PANELS

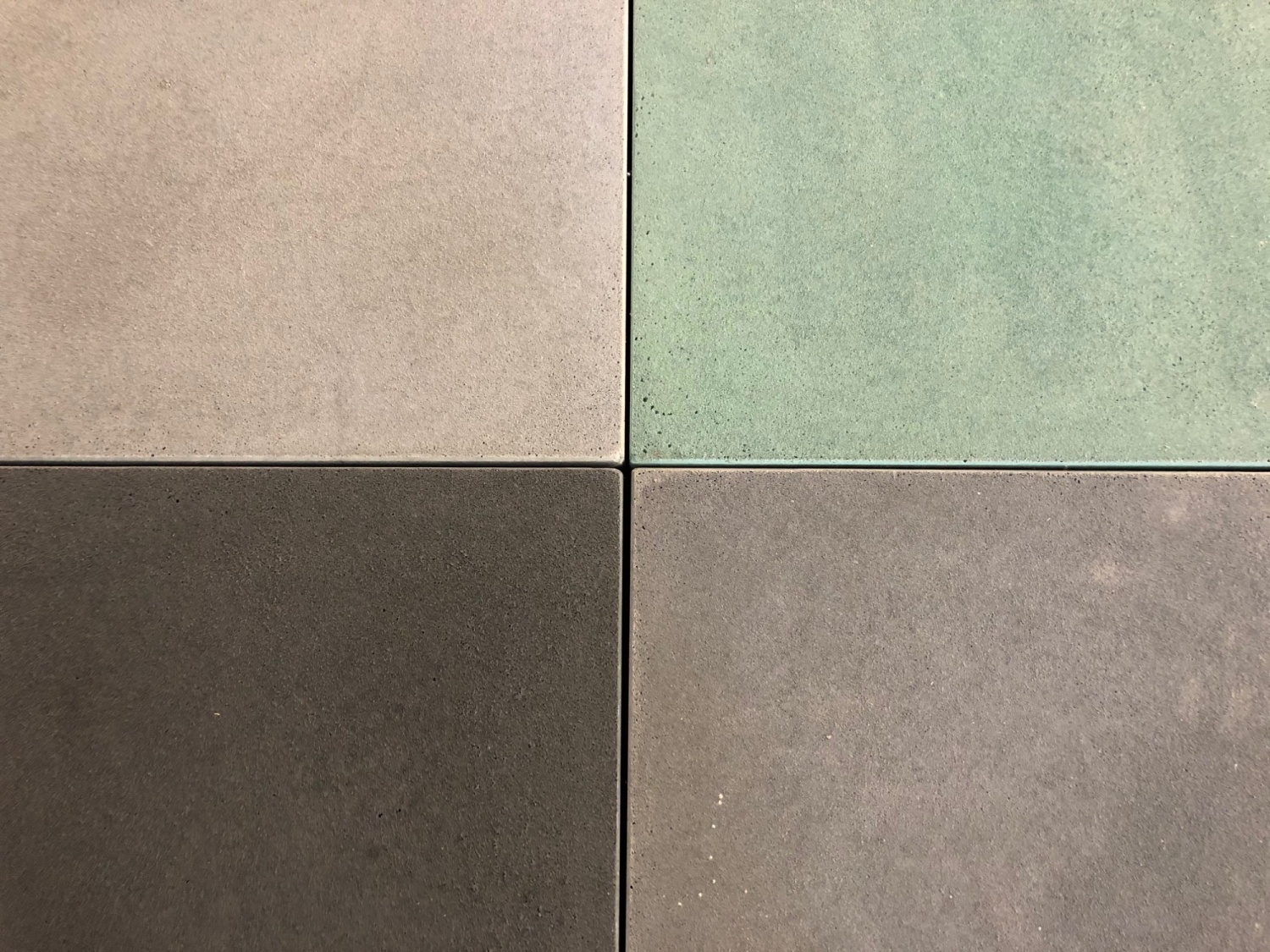

We offer our standard panels with three different surface structures: smooth, porous, rough material
- Thicknesses: min. 2 cm; max. by agreement
- Geometry: see
- Colors below
- Standard colors
- Off-white
- Light grey
- Cement gray
- Dark grey
- Beige
- Greyish brown
- Sand
- Custom colors
- Red
- Green apple
- Dark green
- Purple
- Yellow
- Black
- Tobacco
- Turquoise
- Pink
- Powder
- Silver
- Gold
- Rose gold
- Standard colors
We also produce panels with custom surfaces according to customer requirements (see pictures above)
TECHNICAL PRODUCT SPECIFICATION
THICKNESS ±7,0% CLASS MSZ-EN 12467:2013
LENGTH AND WIDTH ± 0,2% 1. CLASS MSZ-EN 12467:2013
RIGHT ANGLE ±1,0% 1. CLASS MSZ-EN 12467:2013
EDGE STRAIGHTNESS FLAT ± 0,05% POROUS ± 0,05% ROUGH ± 0,12% 1. CLASS (0,2%) MSZ-EN 12467:2013
PLANE MAINTENANCE FLAT ± 1,0% POROUS ± 1,0% ROUGH ± 2,5% MSZ-EN 12467:2013
TINT DIFFERENCES V3* V1 - HOMOGENEOUS V2 - DIFFERENCES MAY OCCUR V3 - EASY TO FIND DIFFERENCES V4 - COMPLETELY UNIQUE SURFACE OR STRUCTURE
COLOR RESISTANCE UV RESISTANT DIN 12878
LOWEST WATERPROOF THE SMALLEST ≤ 0,5% MSZ-EN 12467:2013
FREEZE RESISTANCE ANTIFREEZE XF4 MSZ-EN 12467:2013
FIRE RESISTANCE FIRE RESISTANCE CATEGORY A1 MSZ-EN 13501-1:2007+A1:2010
FLEXIBILITY 8.0 Mpa (N/mm2) 4-ES CATEGORY MSZ-EN 12467:2013
COMPRESSION STRENGTH CLASS: C50/60 MSZ-EN 12390-3:2009
ABRAISON RESISTANCE XK1 MSZ-4798-1:2002
SELF WEIGHT 44 kg/m2 (9,0 lbs/sqft) e=2cm (13/16")
THERMAL EXPANSION COEFFICIENT 10 X 10-6K-1
CUSTOM SOLUTIONS
Examples:
CORNER AND FITTING SOLUTIONS
STANDARD SIZES
with and without anchors
PRODUCT SPECIFICATIONS
MATERIAL | High performance fiber reinforced precast concrete (d=8 mm) |
SURFACE | flat / porous / rough |
COLORS | basic colors (custom colors by arrangement) |
THICKNESS | 20, 25, 30 mm (13/16" or 1 3/16") (custom – by arrangement) |
GROUT | 1-20 mm (1/16"-13/16") |
SURFACE TREATMENT | custom surfaces are also available on request |
AREAS OF USE | both indoors and outdoors |
MANUFACTURING DEADLINE | 4-8 weeks |
PACKAGING | wood or metal frame / pallet |
